Fuzz Pedal Simulation

Greg Whitehead @grwster • 20200226050408000

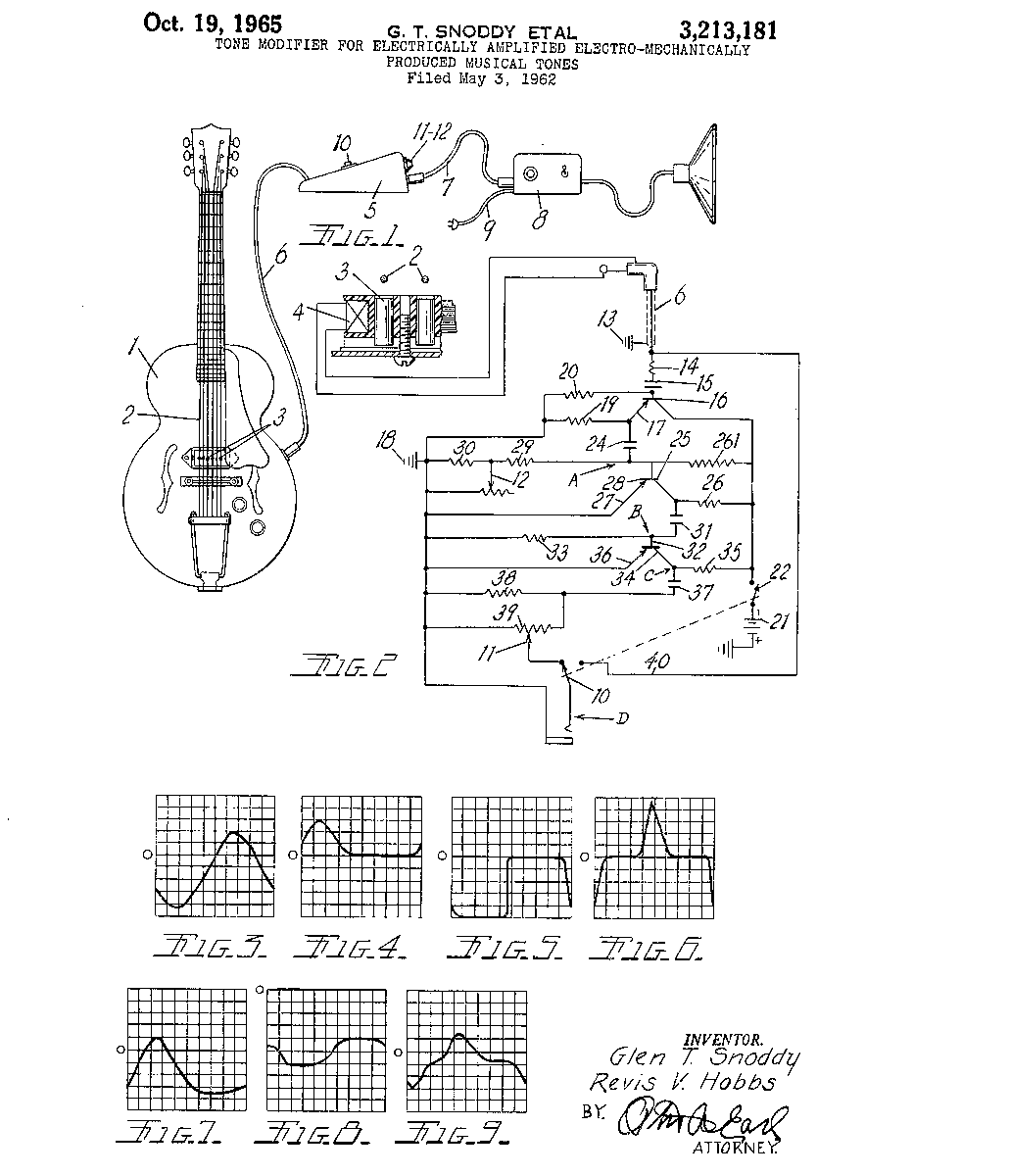

In case you need a transistor-level simulation of the original fuzz pedal, used by the Rolling Stones on Satisfaction, I have you covered: https://grwhitehead.github.io/us3213181/


Greg Whitehead @grwster • 20200227044055000
The challenge was finding/building an accurate, sufficiently leaky, germanium transistor model to make the simulation work.

Greg Whitehead @grwster • 20200227044055000
The breakthrough was discovering this paper by B. Holmes, M. Holters, M. van Walstijn. “Comparison of Germanium Bipolar Junction Transistor Models for Real-Time Circuit Simulation” https://grwhitehead.github.io/germaniumbjts/

Greg Whitehead @grwster • 20200227162757000
Also, thanks to Henrik Forstén for figuring out how to process digitized audio samples through SPICE https://github.com/grwhitehead/spice-audio-tools

Greg Whitehead @grwster • 20200321180959000
Hey, the latest episode of @thatpedalshow visits Macari's in London with @jhspedals to talk fuzz pedal history (with a nod to the Maestro Fuzz Tone, based on the circuit from this patent) https://youtu.be/UrJDtSolEI0

Greg Whitehead @grwster • 20200321181334000
While I'm at it, here's @jhspedals on the history of distortion, including the Maestro Fuzz Tone https://youtu.be/XTGmfsKHcXo

Greg Whitehead @grwster • 20200321181335000
And here's @jhspedals with the original Maestro Fuzz Tone demo record, trying to sell it as a way to make horn sounds https://youtu.be/iK4hBbVOnHQ
