Frog Clock Battery Hack

Greg Whitehead @grwster • 20210110191301000

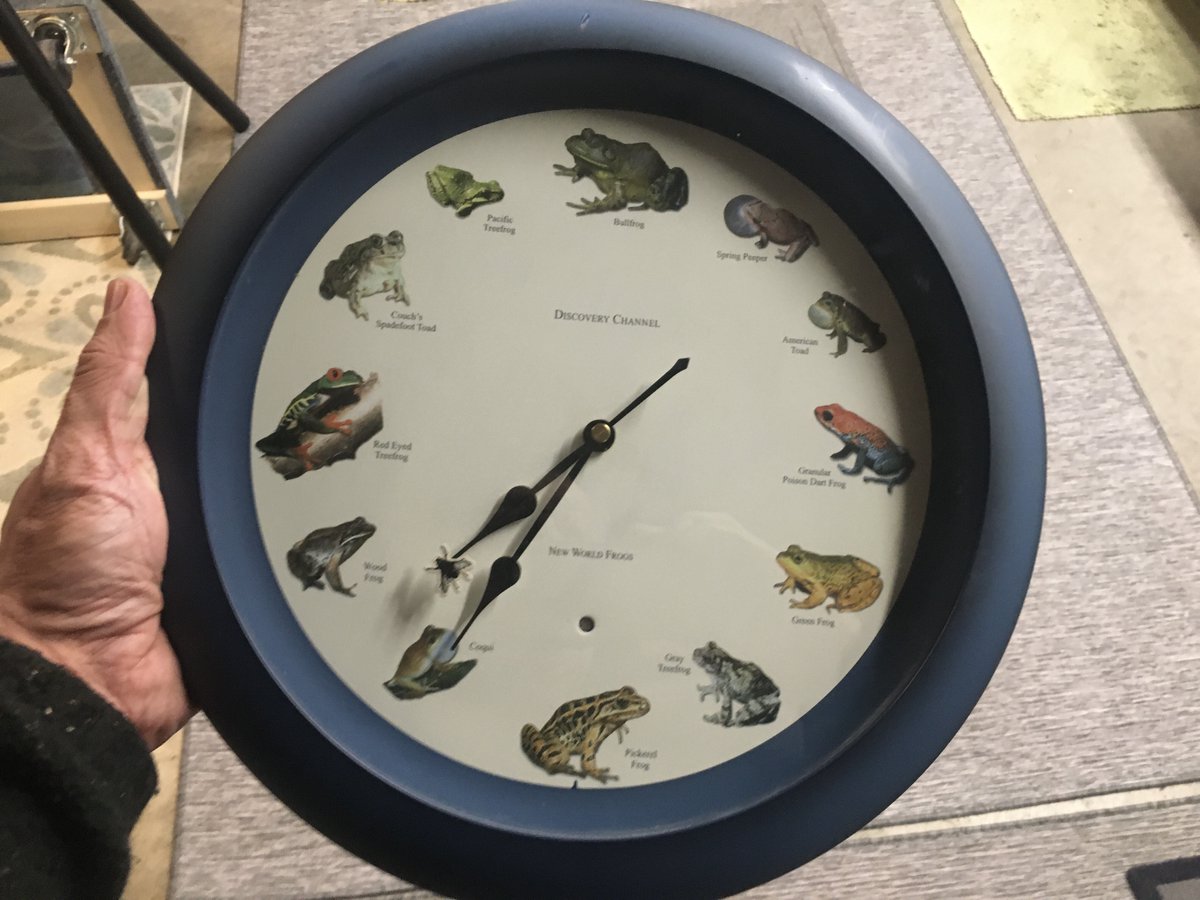

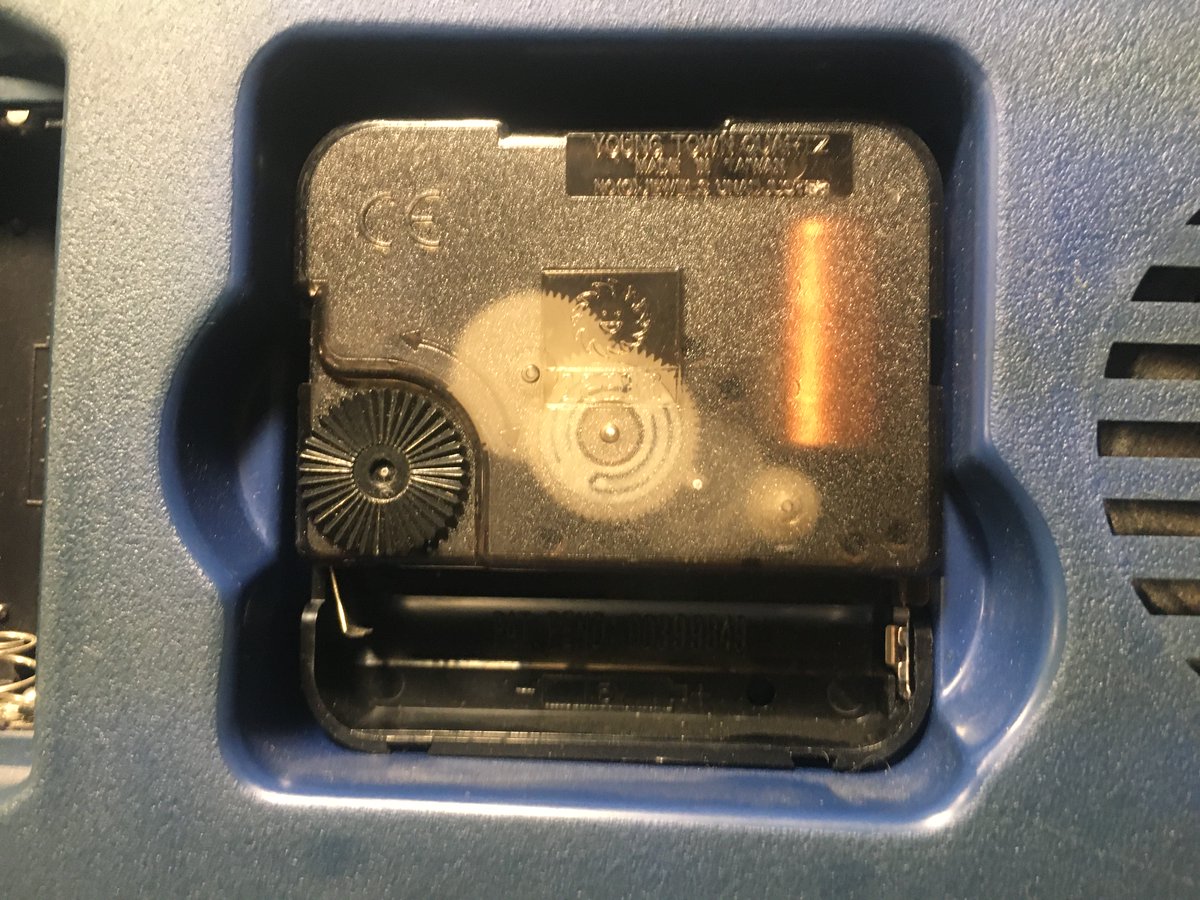

How tired am I of replacing the AA battery in this wall clock?

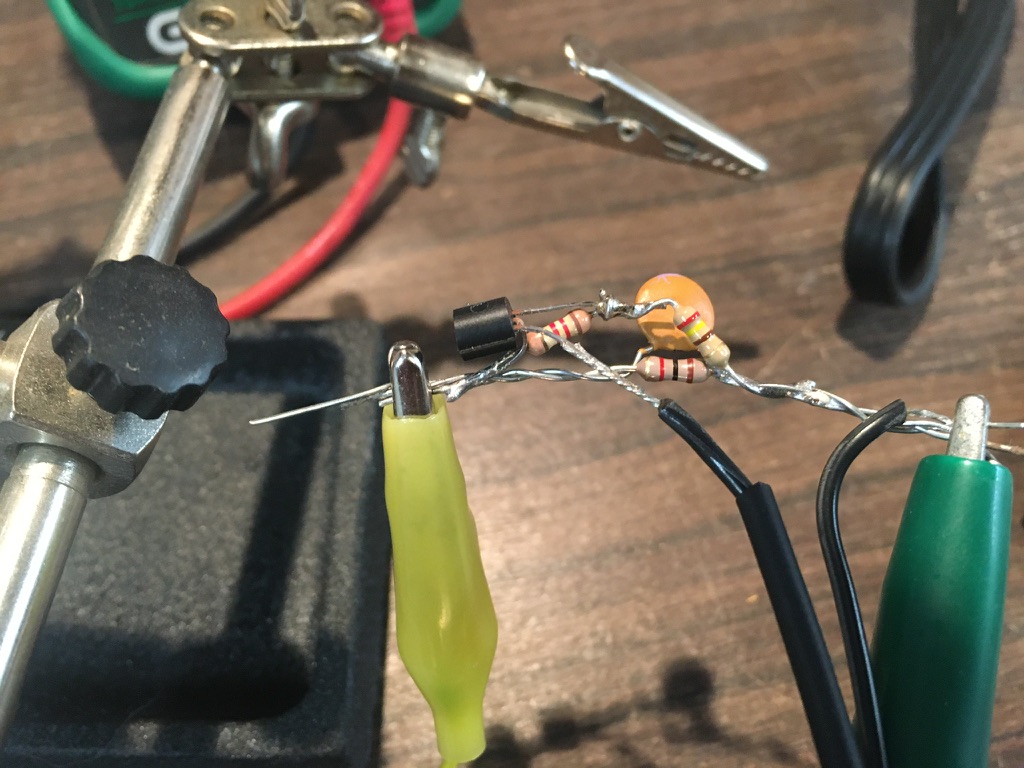

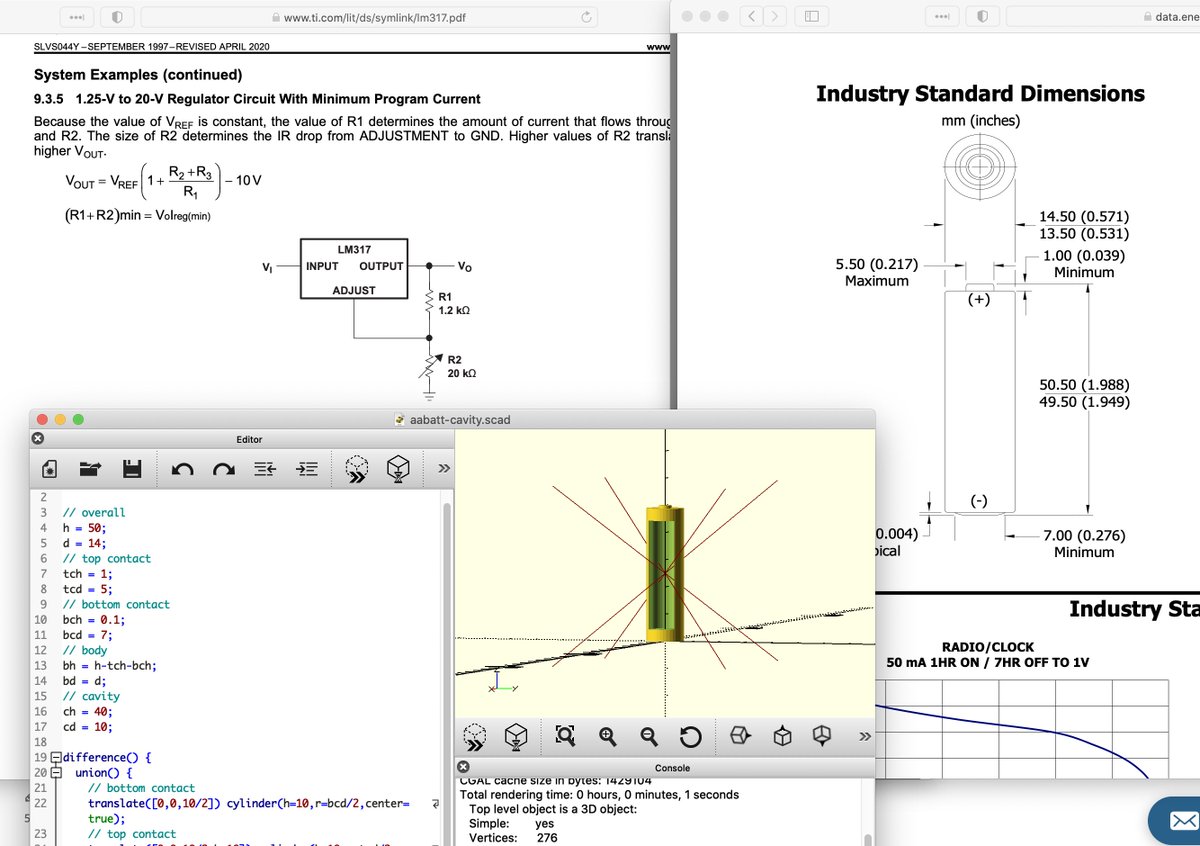

Building a circuit to convert an old wall wart into a AA battery replacement tired. ;-)
Hoping to fit the circuit in a 3d printed AA battery shell.




Greg Whitehead @grwster • 20210112013231000

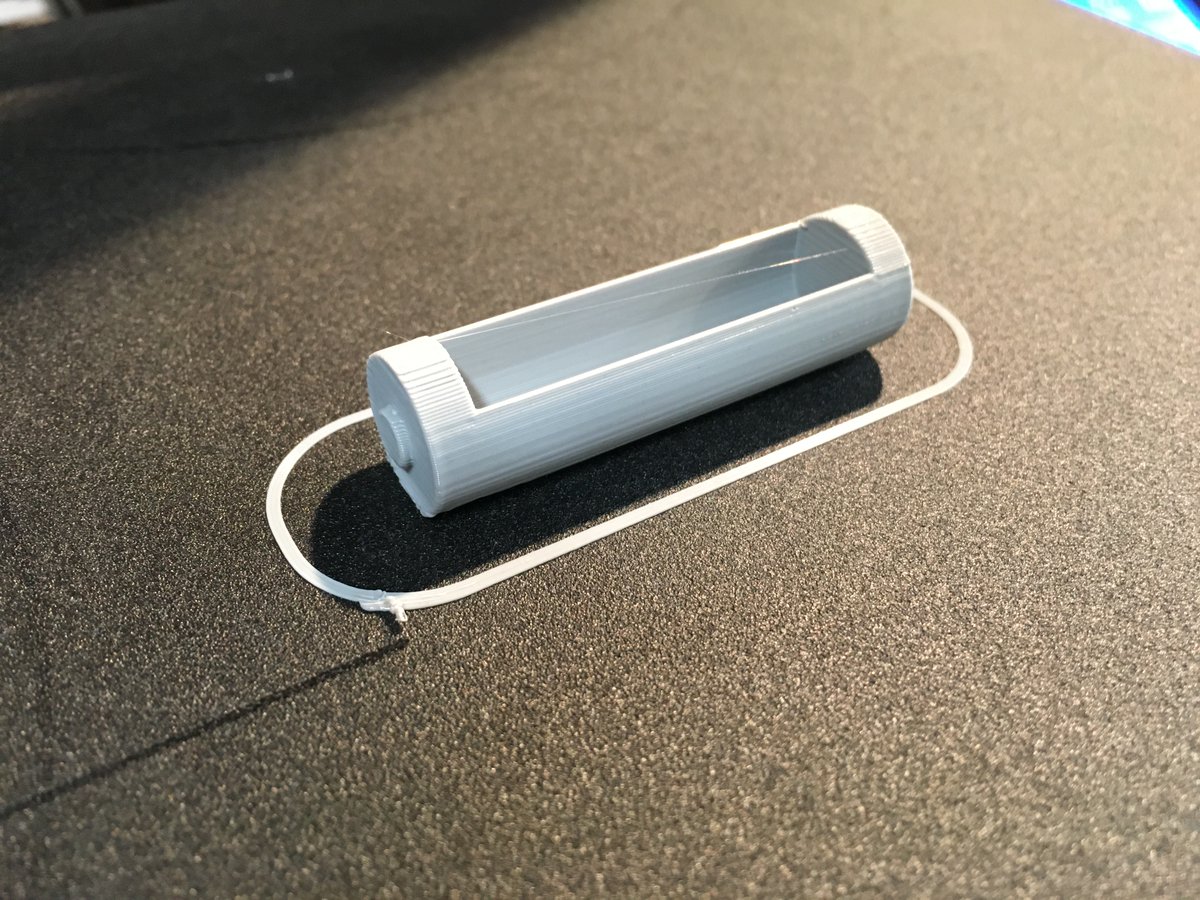

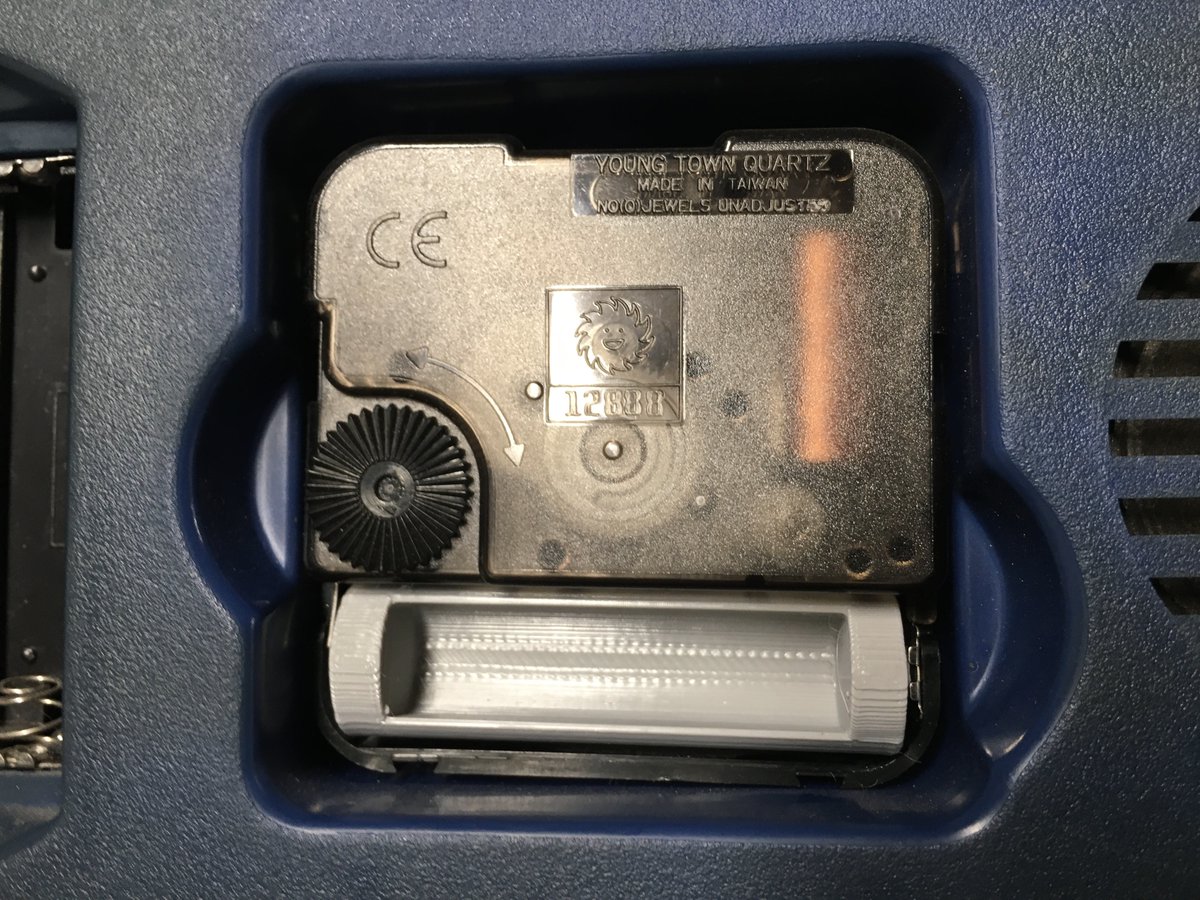

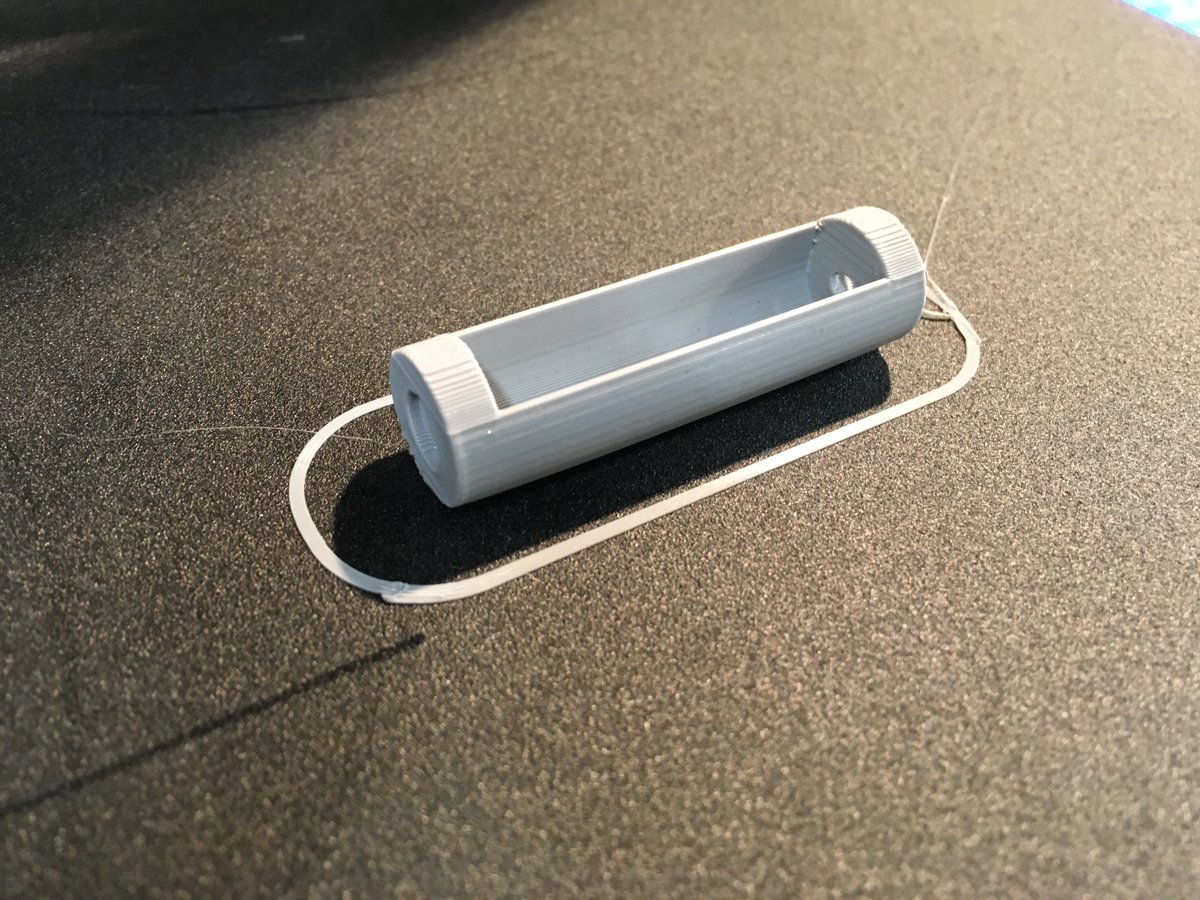

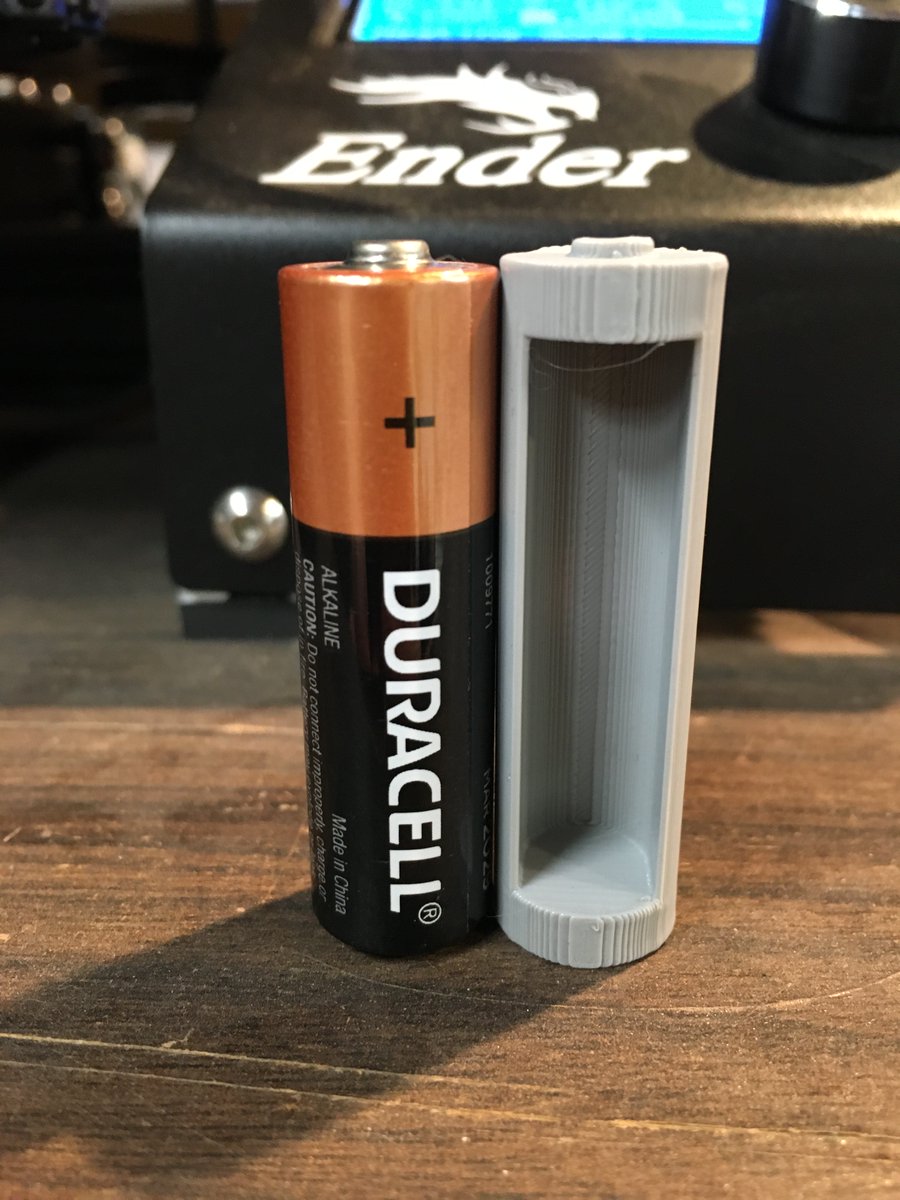

Testing the dimensions of my AA battery model... close enough, it fits!




Greg Whitehead @grwster • 20210112014150000

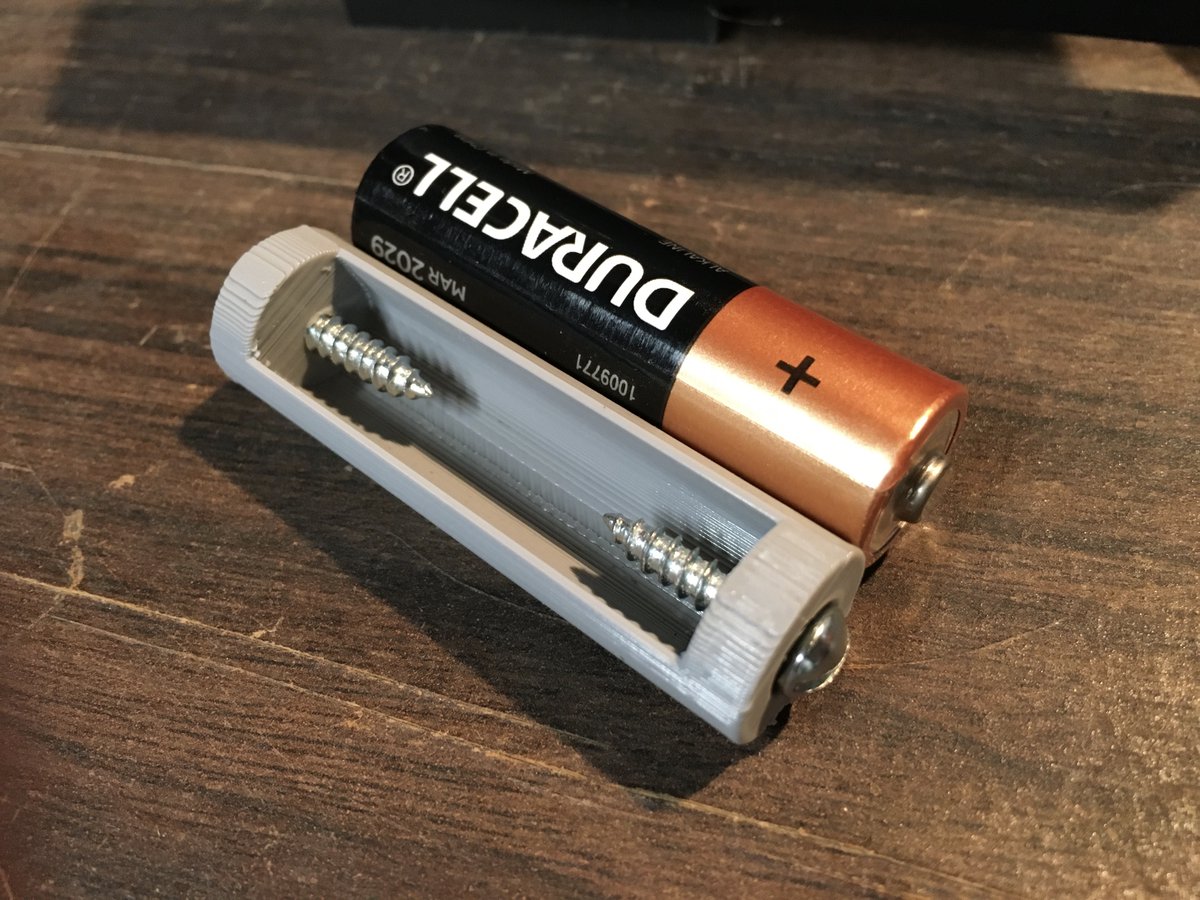

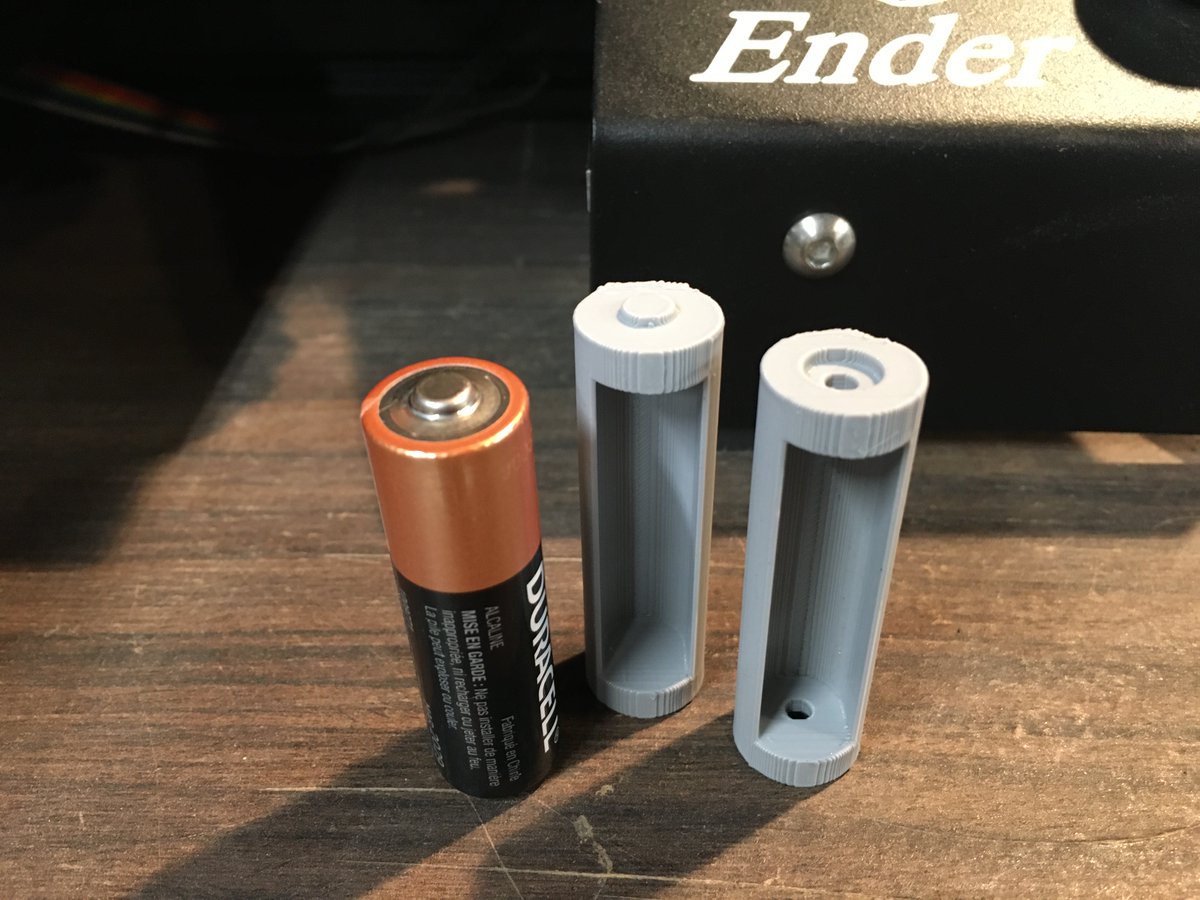

Second test, this time with modifications to accept #6 screws for terminals. I need some shorter screws. It also fits!





Greg Whitehead @grwster • 20210113044102000

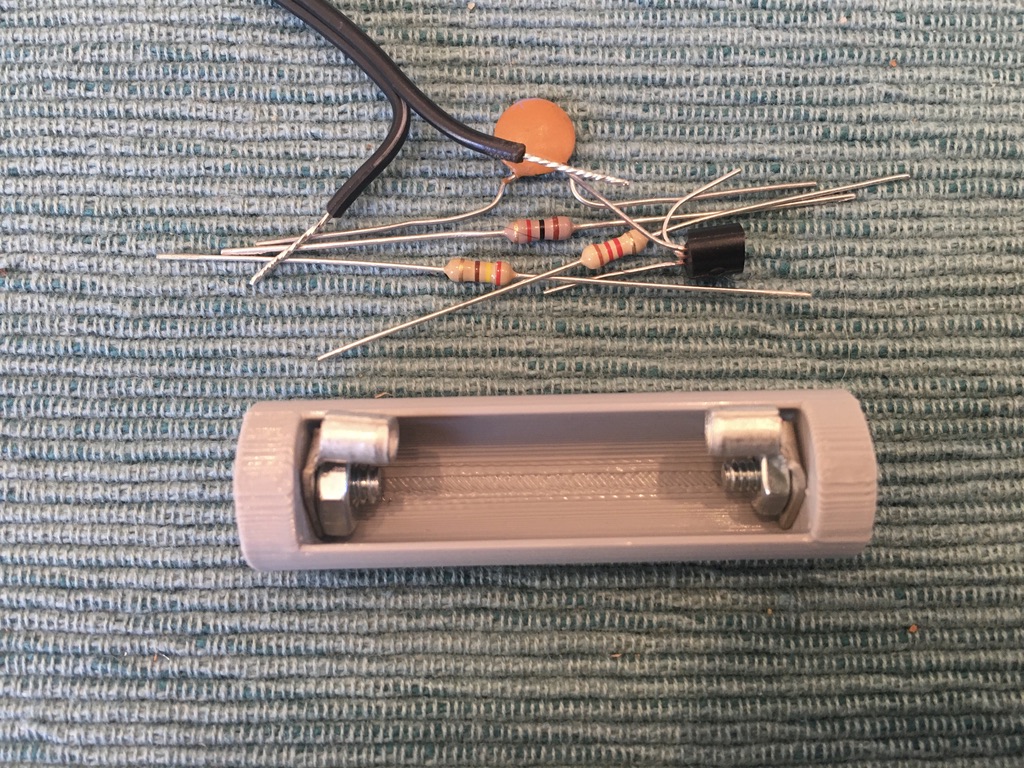

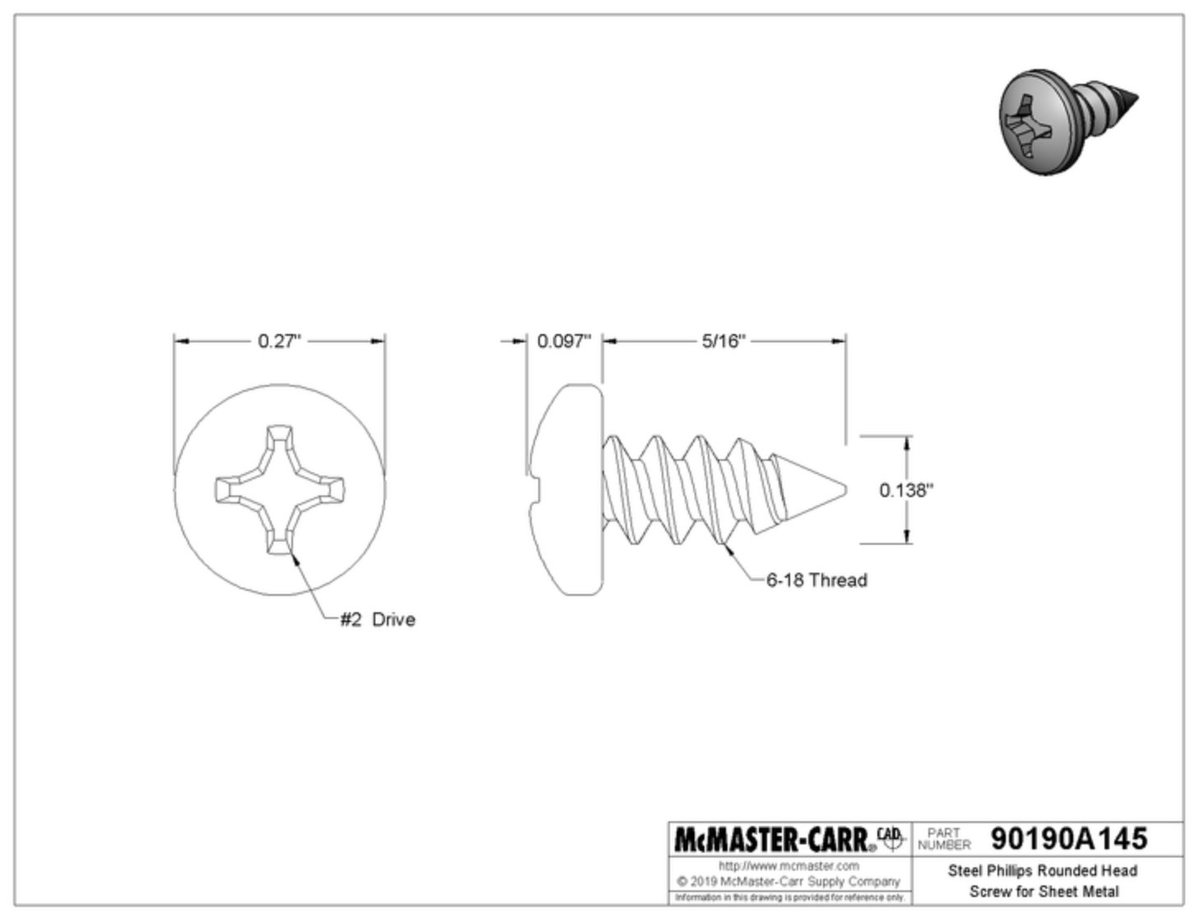

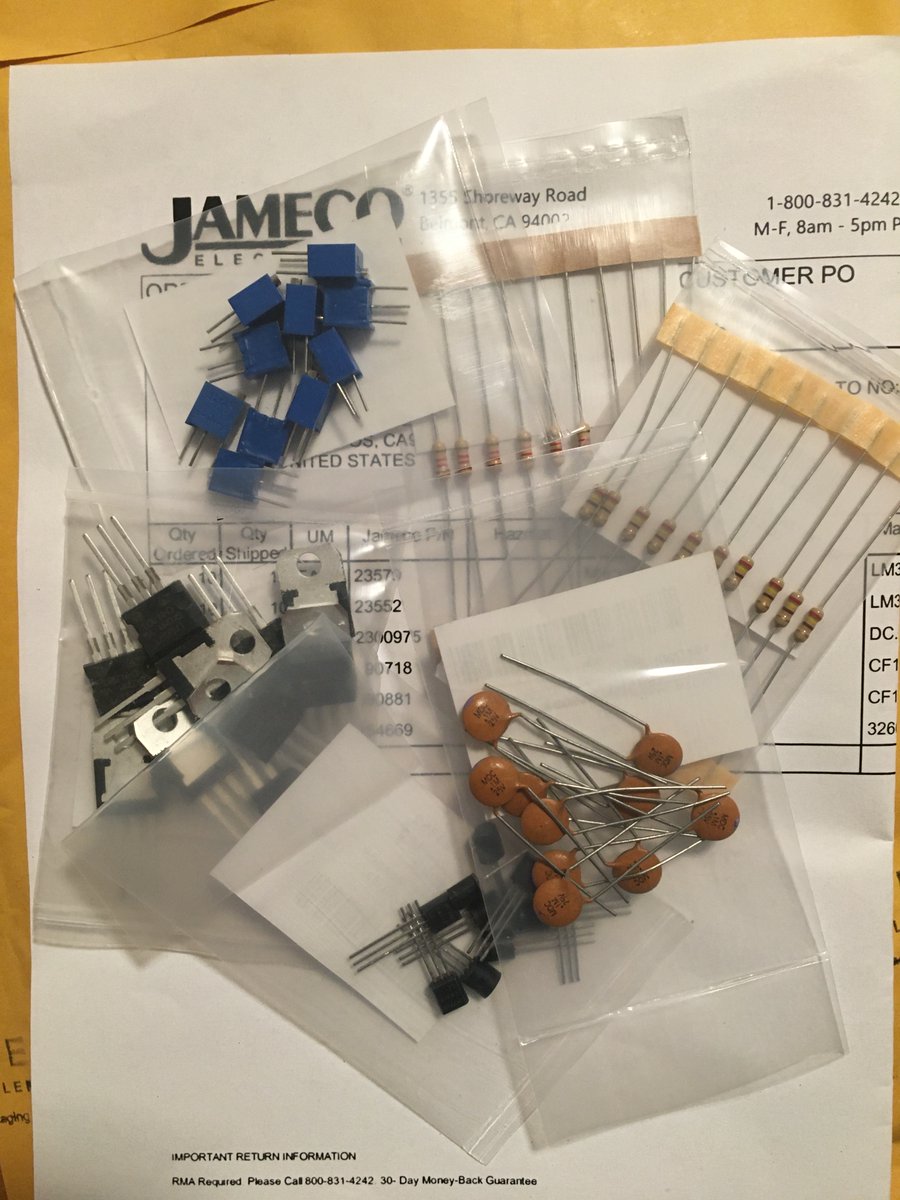

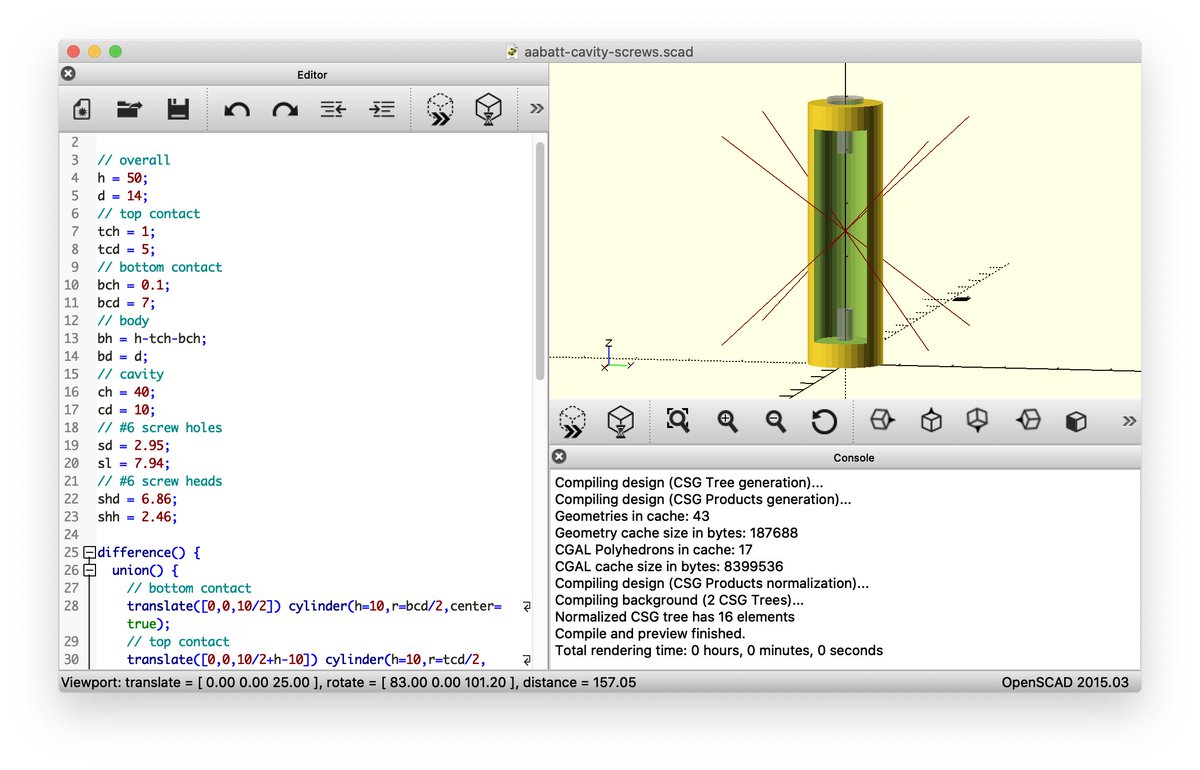

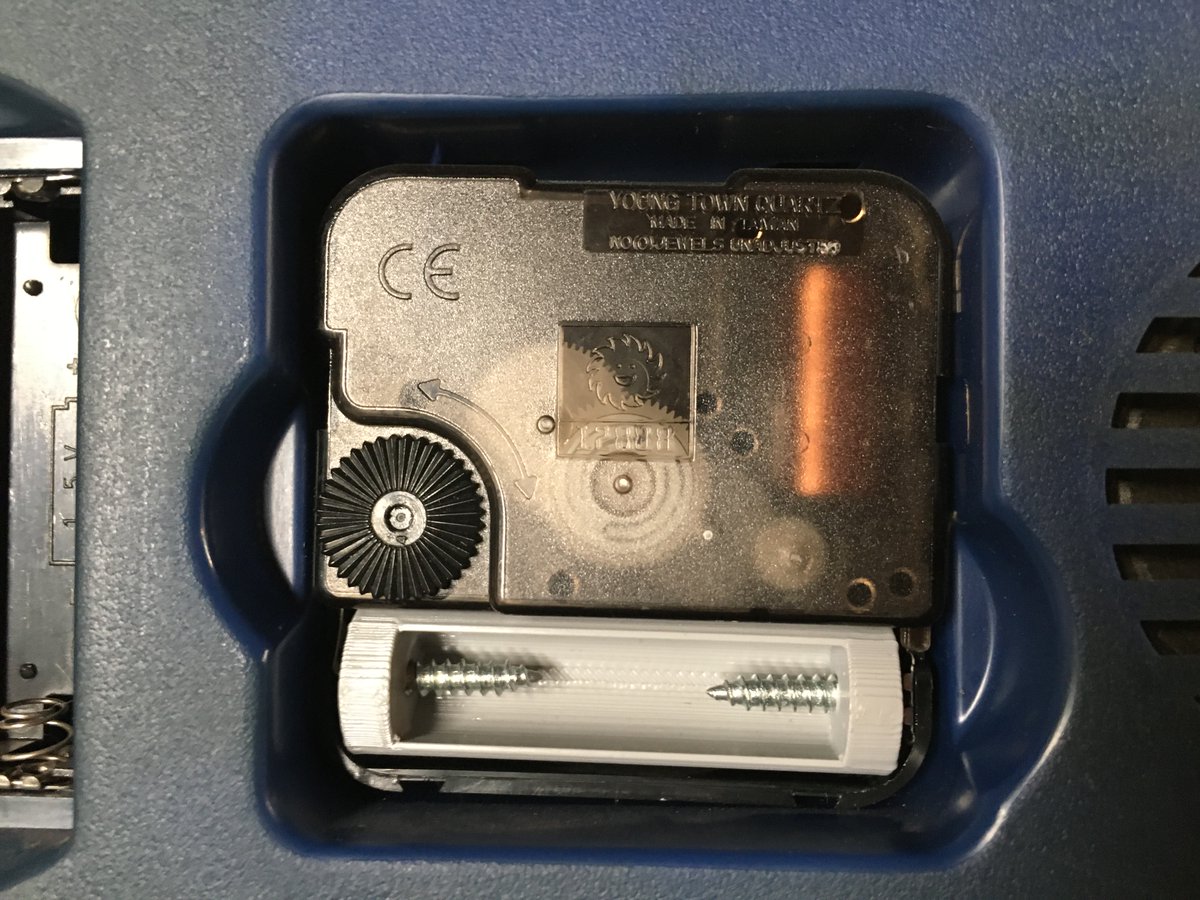

The updated AA battery model, using 5/16" #6 screws for terminals (McMaster-Carr catalog FTW). Also, we have parts!




Greg Whitehead @grwster • 20210114033927000

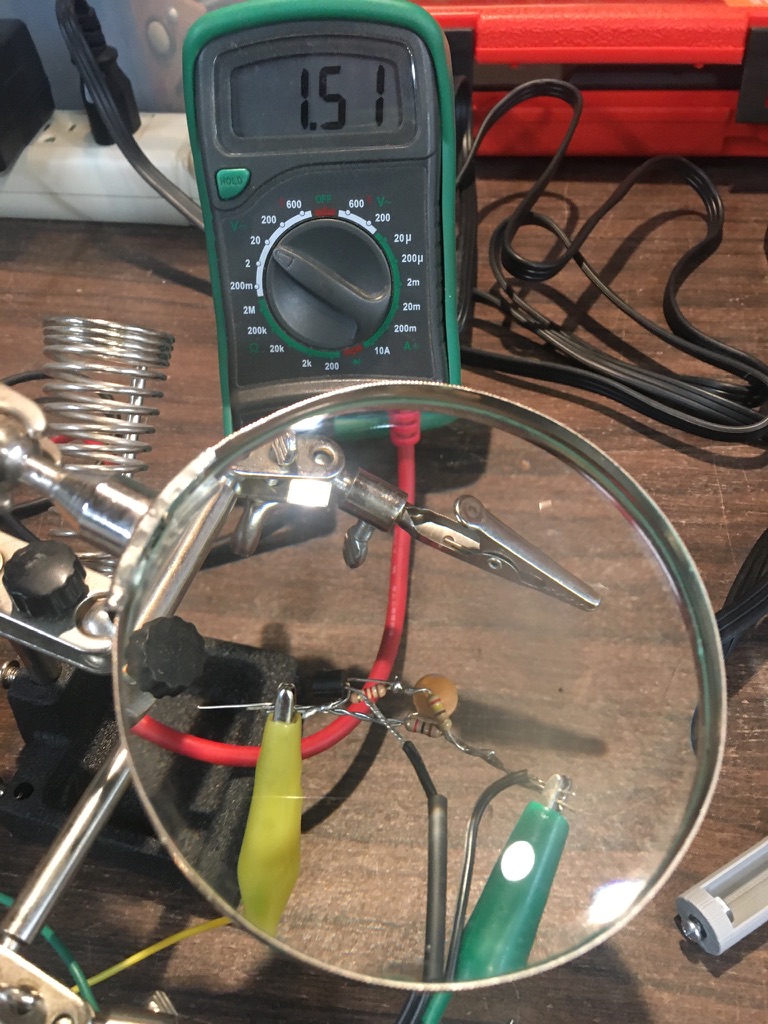

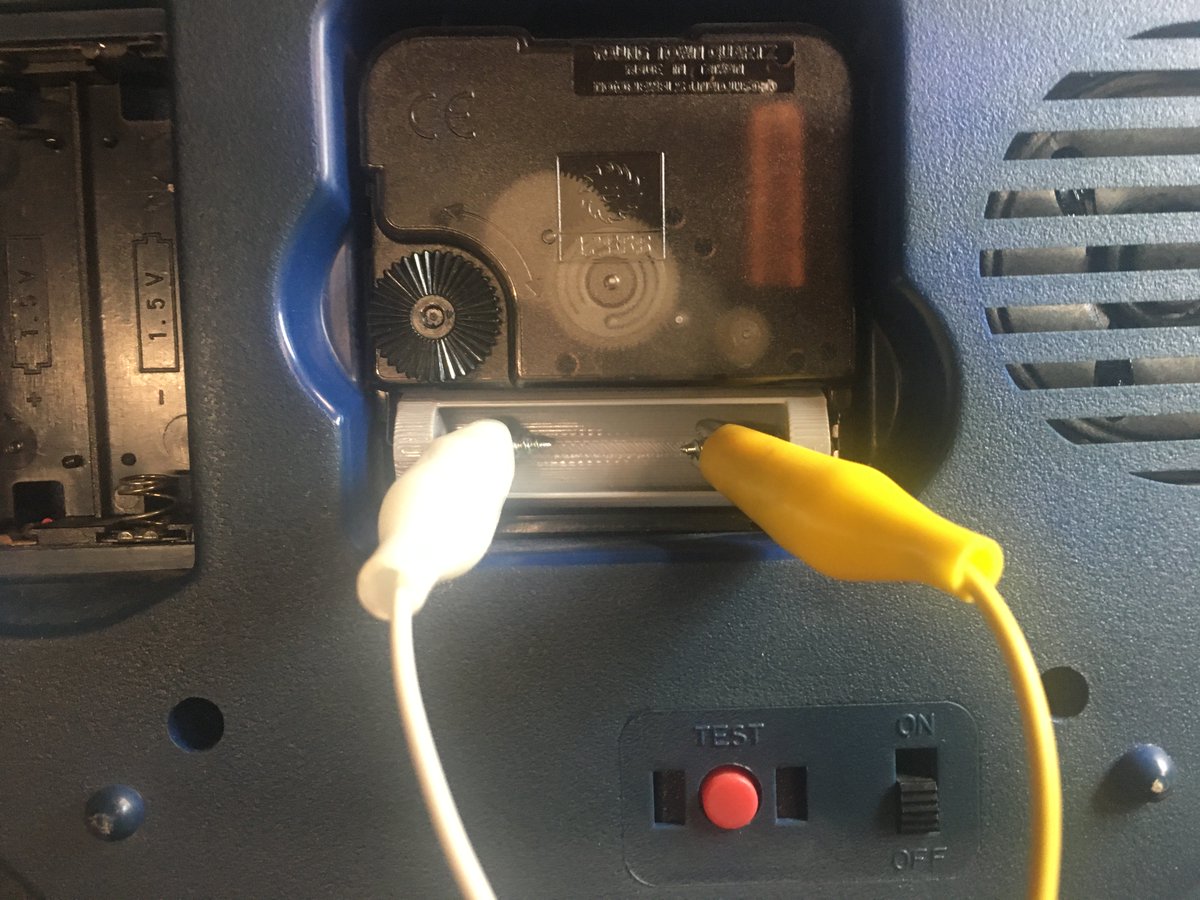

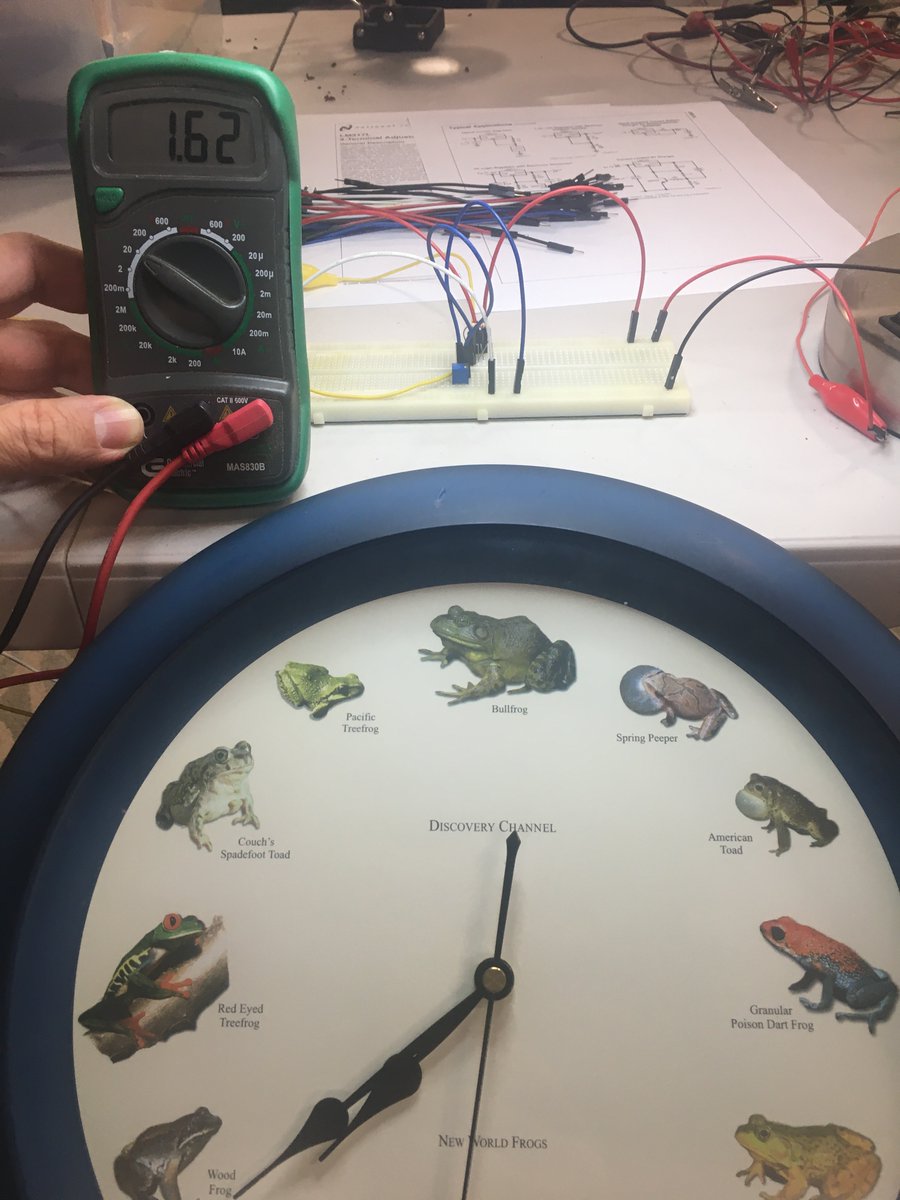

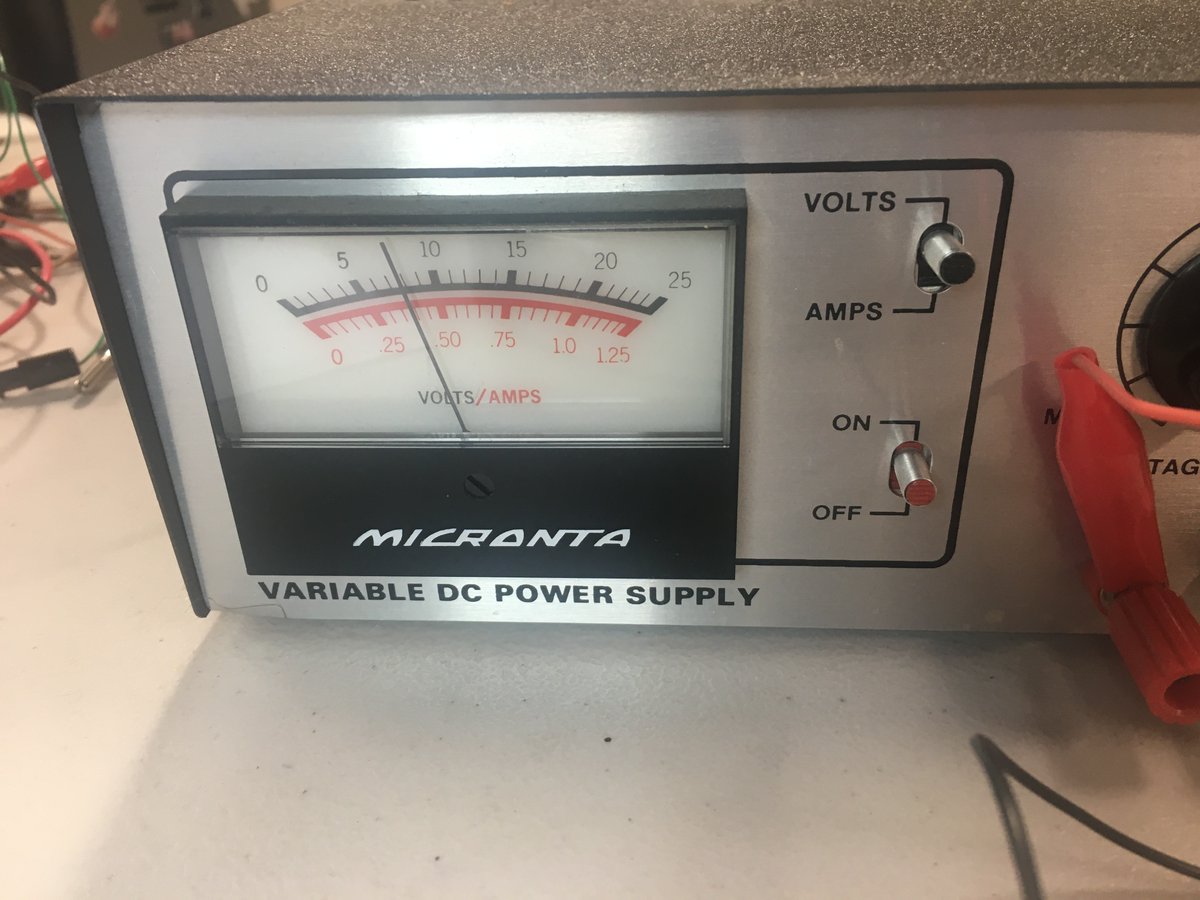

We have power! Next step is to try fitting the circuit into the cavity in the fake battery.




Greg Whitehead @grwster • 20210114033933000
Tick Tock

Greg Whitehead @grwster • 20210203224302000

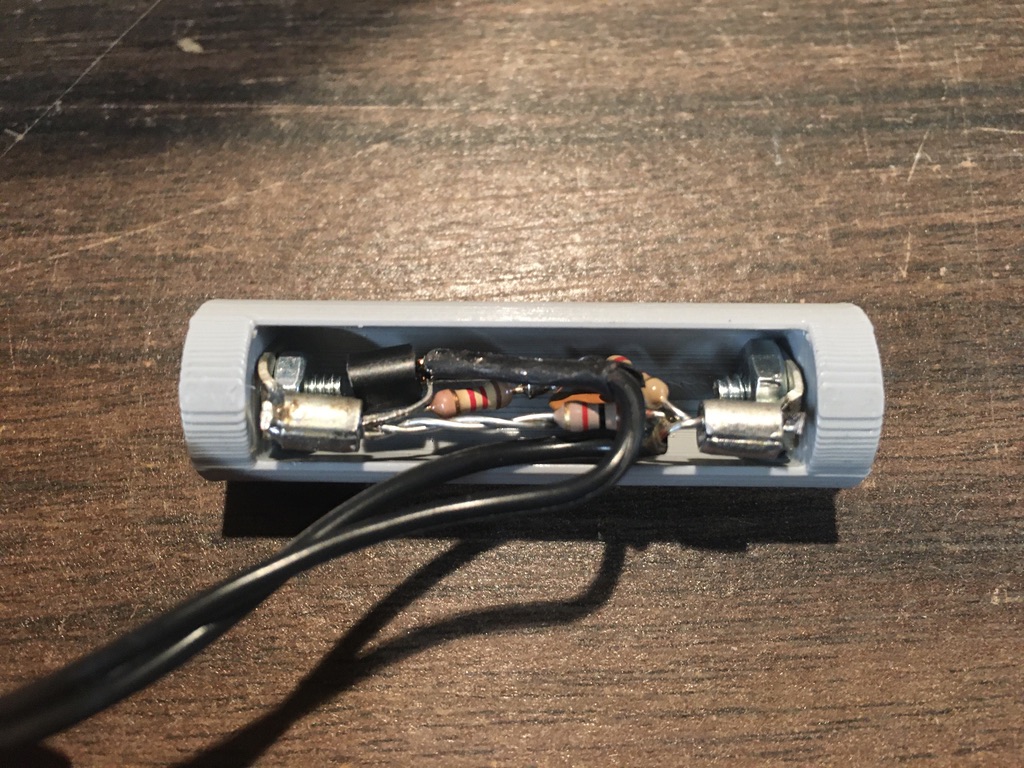

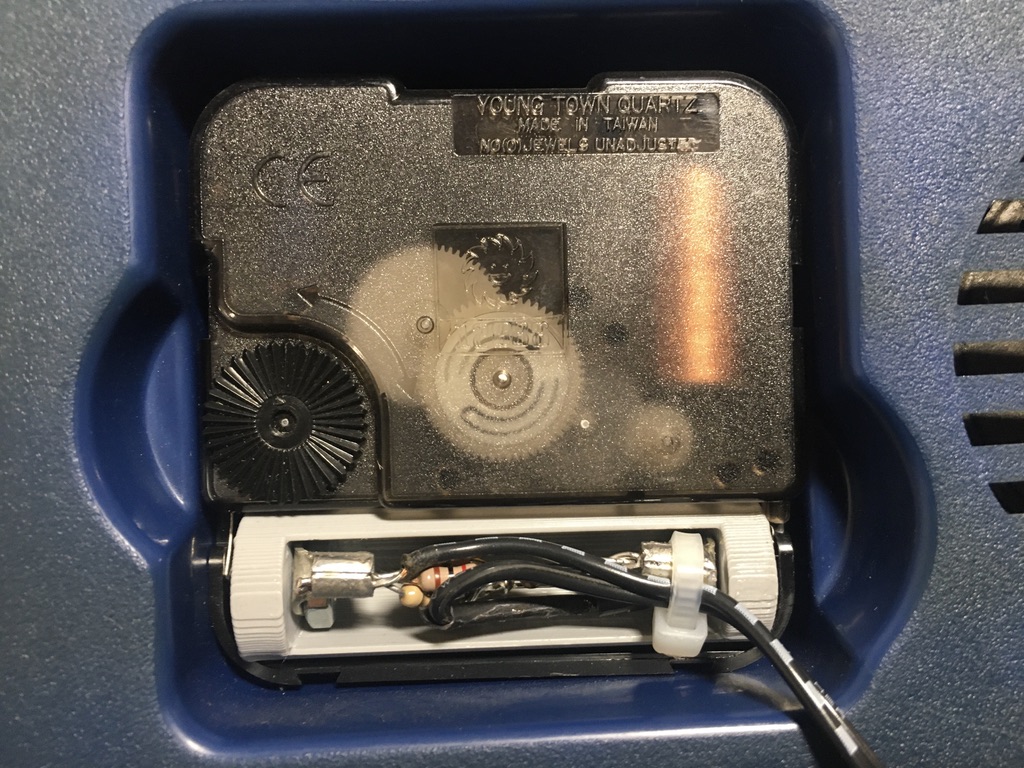

Finally got around to getting this circuit off the protoboard and into the fake battery, dead bug style.




Greg Whitehead @grwster • 20210203224303000

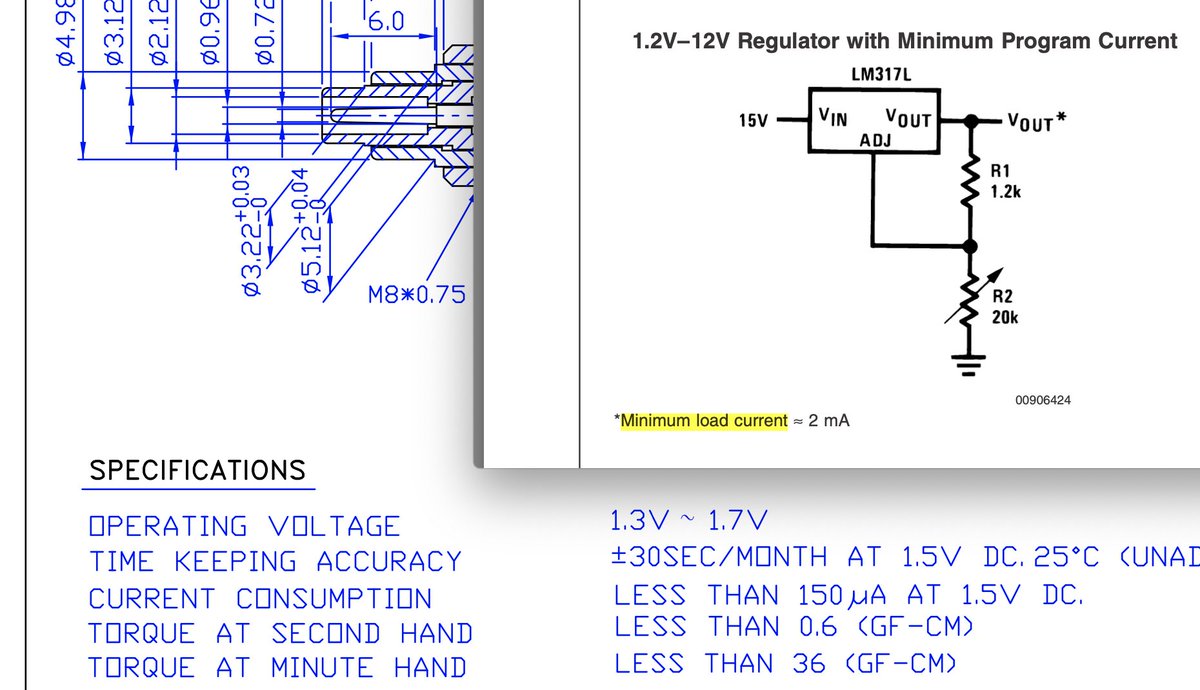

The clock draws so little power that I had to add a dummy load to make the voltage regulator happy. I also added an output capacitor to help handle the spikes caused by the clock movement.


Greg Whitehead @grwster • 20210203224304000
It all fits! I used spade lugs and a cable tie for strain relief.



Greg Whitehead @grwster • 20210203224522000

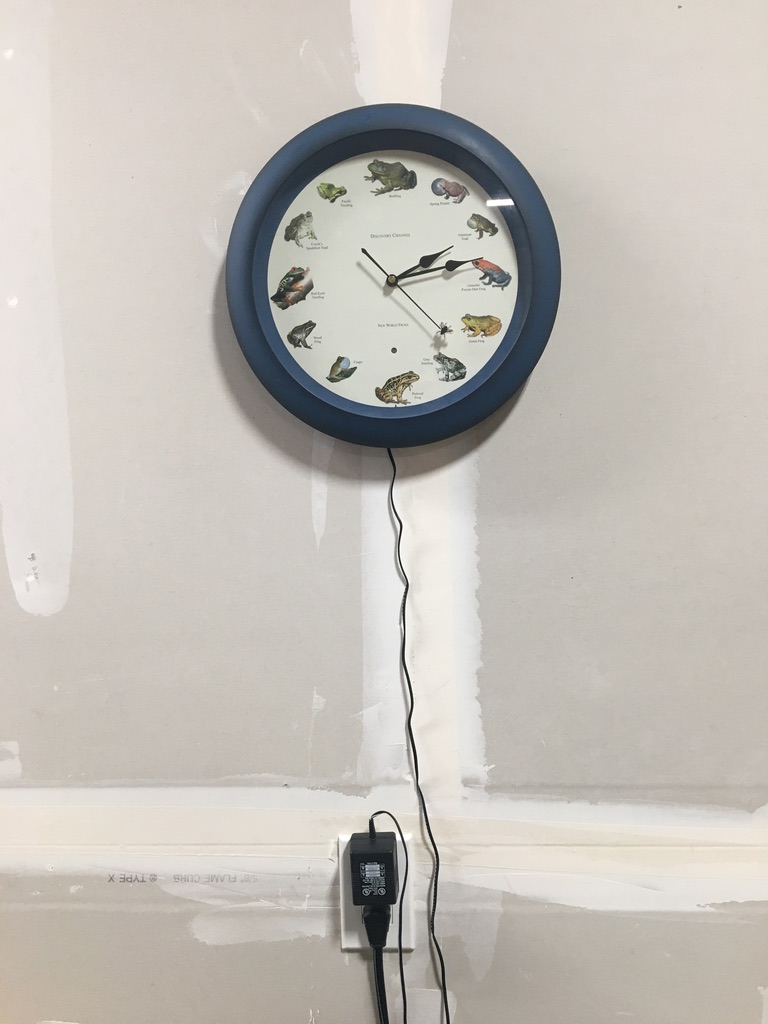

Hanging on the wall in the garage, powered with an old 9v guitar pedal power supply. No more batteries!
