More Fuzz Pedal Simulation

Just published a big update to my Maestro Fuzz Tone circuit simulation, now using a 2N270 germanium transistor model developed by Gert Willmann: http://www.grwster.com/projects/2020/germaniumfuzzsim/

The new model includes temperature parameters, so you can hear the Fuzz Tone break up at 40°C!

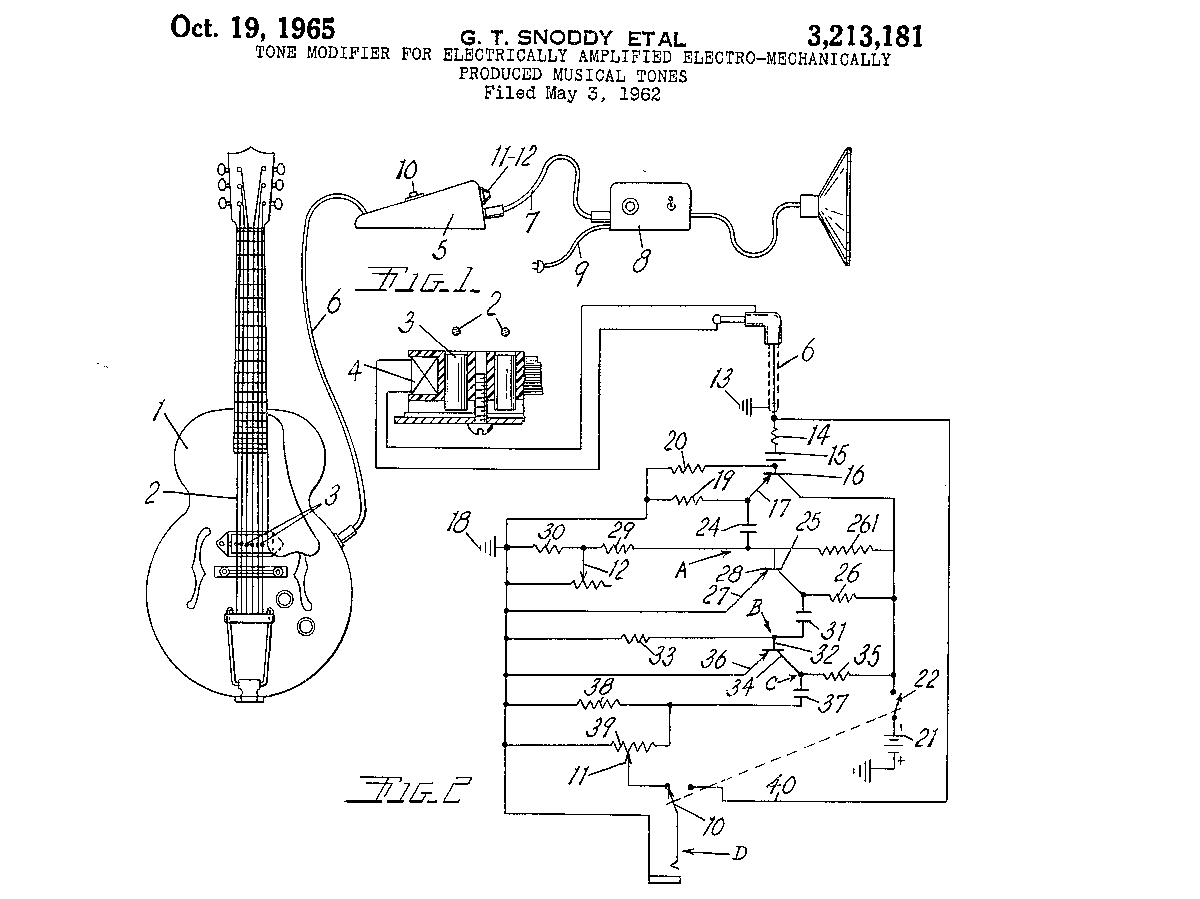

Also, using the temperature sensitivity of the germanium transistors, we were able to estimate the temperature in the room where Snoddy and Hobbs measured the circuit for the patent filing: 20°C / 68°F ;-)

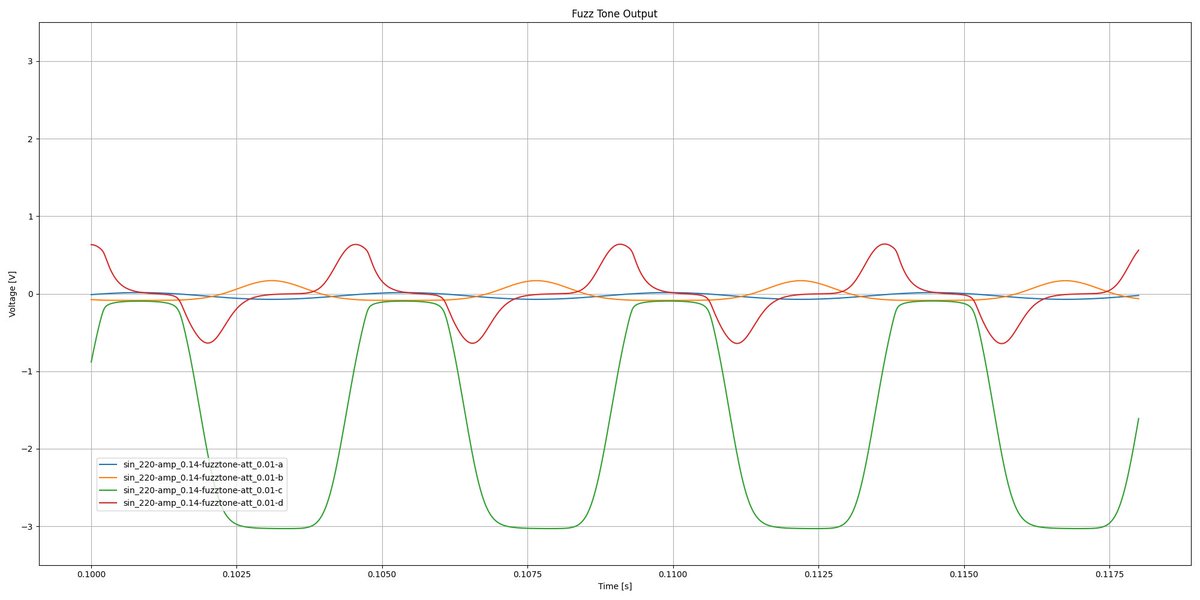

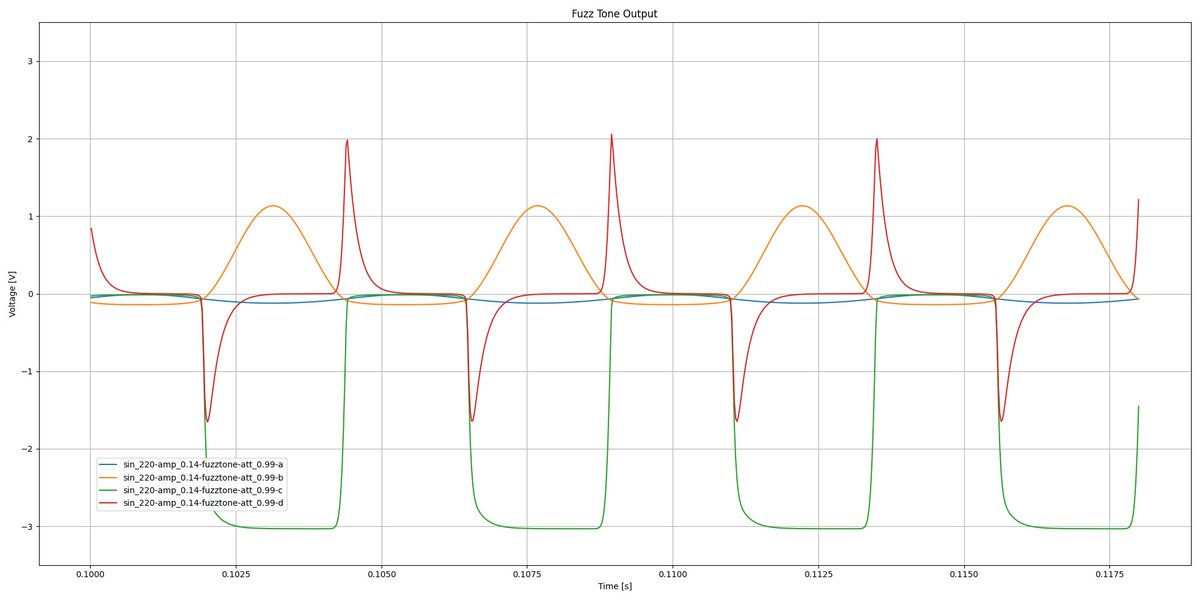

Simulation details, waveform plots, and more audio here: https://grwhitehead.github.io/us3213181
